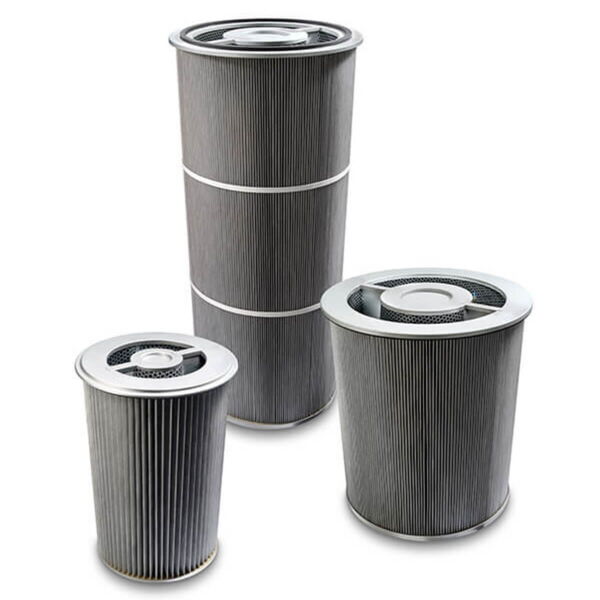

MULTICELL Filter Cartridges Ø 570–465 mm

  • Large filter area on small space
  • Filter side inside and outside
  • Alternate cleaing by jet pulse during operation
  • Conical shape


Shot blasting machines
Industrial dust collectors
Separation of welding smoke
Pharma industry
Chemical industry

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.


  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

  • Ring nozzle
  • Solenoid valves
  • Valve controls

For raw gas side or clean side installation

Length L
Filter area
570-465 605 17,0
570-465 985 20,0
570-465 985 28,0
570-465 1205 34,0

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
