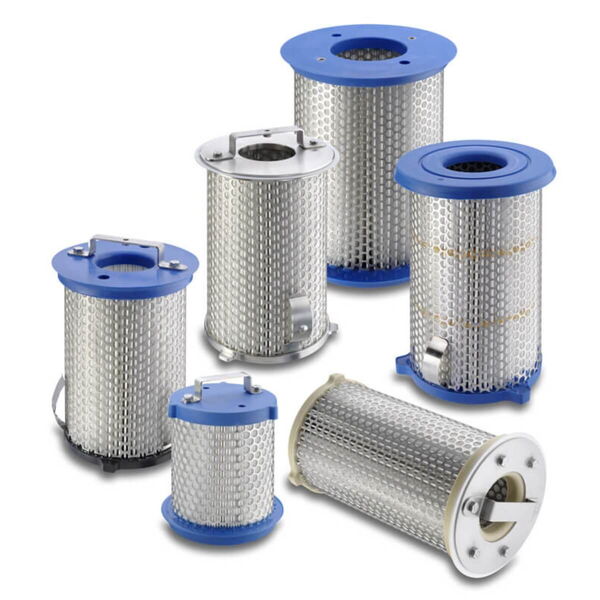

Push-Push and Push-Pull Filter Cartridges for Containment

  • Silicone and polyurethane free possible
  • Stable Gasket
  • Chemically resistant
  • Suitable for all ATEX zones
  • Design according to EC and US FDA regulations possible

Einsatzgebiete

Push-Push- und Push Pull-Filterpatronen schützen Mensch und Produkt bei der Produktion von hochaktiven Stoffen in der pharmazeutischen und chemischen Industrie. Sie sorgen für einen kontaminationsfreien Wechsel von Filterpatronen in Isolatoren.

Dosing
Mixing
Weighing
Pressing
Packing

  • Glass fiber paper
  • polyester non woven with ePTFE membrane
  • antistatic

They meet separation grades H13 / H14 according to DIN EN 1822 or H according to DIN EN 60335-2-69 appendix AA.

Properties and special designs

  • Temperature resistant standard up to 80 °C, special versions up to 120 °C
  • Silicone- or polyurethane-free elements
  • End caps
    Are made of Stainless steel for chemical resistance or synthetics
  • Gasket
    The particularly stable seal ensures maximum airtightness.
    Materials: silicone, polyurethane or EPDM

Harmless for foodstuffs according to EC and US FDA regulations

  • REG (EC) 1935/2004
  • REG (EC) 2023/2006
  • REG (EU) 10/2011
  • US-FDA 21 CFR

Filter cartridges made by R+B Filter are adapted to your individual requirements.

Possible degrees of separation:
- H13 / H14 according to DIN EN 1822
- H according to DIN EN 60335-2-69 Annex AA

Nominal Ø K for mounting
[mm]
Length L
[mm]
Filter area
[m²]
135 150 0,65
150 250 0,87
200 300 1,7
280 400 3,1

The following certificates can be supplied:

  • Harmless for food according to EC and US FDA regulations
  • Separation efficiency according to DIN EN 1822 with individual serial number per filter cartridge
  • Declaration of compliance 2.1 according to EN 10204
  • Test report 2.2 according to EN 10204
  • Inspection certificate 3.1 according to EN 10204
  • BSE / TSE certificate

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
