- Filter Cartridges Ø 228 mm

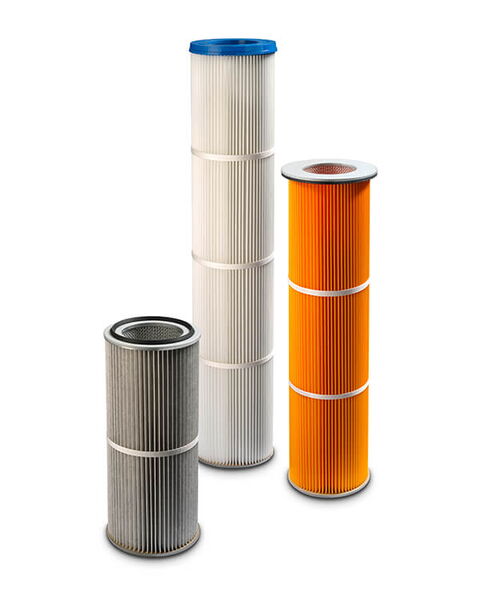

Filter Cartridges Ø 228 mm
- Easy to clean
- Open and flat pleats
- High mechanical strength
Applications
Chemical industry
Mining industry
Food industry
Laser & plasma cutting
Shot blasting machines
Minimum quantity lubrication
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 400 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Short injector
- Solenoid valves
- Valve controls
Raw gas side installation with tie rod
For raw gas side installation with rod
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
228 | 602 | 3,0 |
228 | 982 | 5,0 |
228 | 1202 | 6,0 |
Accessory: filter holder 310-001-000023
Clean side installation
For clean side installation Ø 260 mm
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
228 | 602 | 3,0 |
228 | 982 | 5,0 |
228 | 1202 | 6,0 |
For raw gas side installation with snap lock
For raw gas side installation with snap lock
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
228 | 605 | 3,0 |
228 | 985 | 5,0 |
228 | 1202 | 6,0 |
Technical changes reserved.
