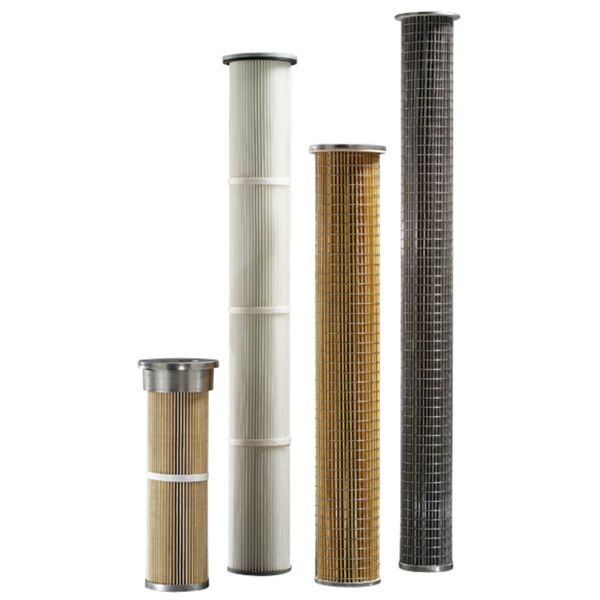

Filter Elements for Hot Gas Filtration
- Designed for the special conditions found in dust collection at high temperatures
- Maximum operating temperature 400 °C
- For use in ATEX zones
- Long service life
Applications
In order to withstand the extreme conditions of use at high operating temperatures, our hot gas filter elements have a particularly robust construction. The filter media are also adapted to the respective areas of application.
Cleaning of dust particles from hot process air
Drying of food for further processing or for the production of pigments for a wide range of uses such as paints or cosmetics
Filling trucks
Extraction from melting furnaces
- Polyester
- PPS
- Aramid
- Polyimide
- Glass fibre
- Stainless steel weaves
Special filter media for unusual operating conditions are available on request.
- Maximum operating temperature 400 °C
- Metal parts of zinc plated steel or stainless steel
- Cleanable by jet pulses or washing
- Can be used in ATEX zones
Special types are for exceptional operating conditions are available on request.
- Air flow deflectors
- Venturi nozzles
- Short injectors
- Solenoid valves
Filter Cartridges 80 - 140 °C
Ø A [mm] |
Ø R [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|---|
150 | 175 | 982 | 2,5 |
228 | 260 | 982 | 5 |
327 | 353 | 982 | 16 |
Filter Cartridges 140 - 220 °C
Ø A [mm] |
Ø R [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|---|
150 | 175 | 982 | 2 |
228 | 260 | 982 | 4 |
327 | 353 | 982 | 10 |
Filter Cartridges 220 - 400 °C
Ø A [mm] |
Ø R [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|---|
150 | 175 | 1302 | 2,7 |
228 | 260 | 1302 | 4 |
327 | 353 | 1302 | 7,5 |
Technical changes reserved.
More filter elements for hot gas filtration

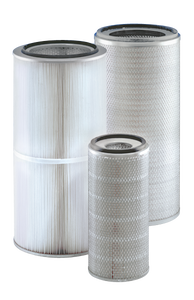

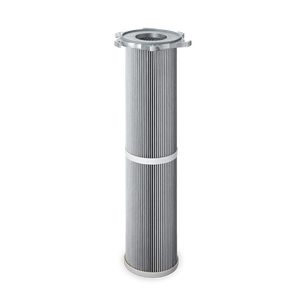

Filter cartridges up to 140 °C
For the temperature range from 80 to 140 °C, our filter cartridges are equipped with materials that are resistant to these operating temperatures. We supply most standard filter cartridges as special versions up to 140 °C.
Filter Panels up to 120 °C
Our filter panels for dedusting technology can be used as a special version up to 120 °C.
Filter cassettes up to 140 °C
Our filter cassettes for dedusting systems can be used as a special version up to 140 °C.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
