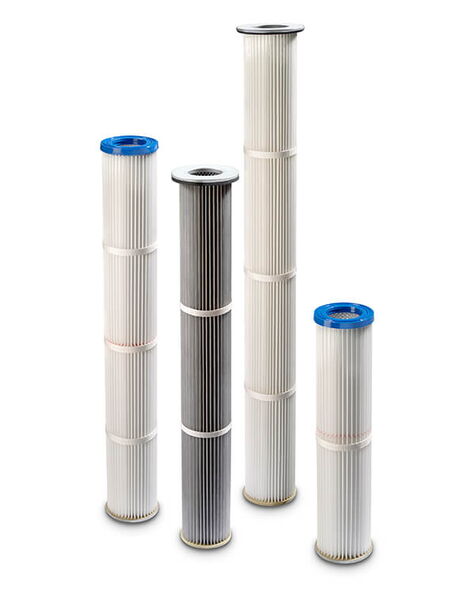

Filter Cartridges Ø 130 mm
- Low pleat depth, easy to clean
- For agglomerating dust
- High air to cloth ratios possible
Applications
Pneumatic conveyance
Production of food
Loading facilities
Product separator
Silo ventilation
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
Raw gas side installation with snap lock
For raw gas side installation with snap lock
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 130 | 305 | 0,5 |
| 130 | 605 | 1,0 |
| 130 | 985 | 1,7 |
| 130 | 1205 | 2,0 |
Accessory: filter holder 310-001-000026
Clean side installation
For clean side installation Ø 155 mm
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 130 | 302 | 0,5 |
| 130 | 602 | 1,0 |
| 130 | 982 | 1,7 |
| 130 | 1202 | 2,0 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
