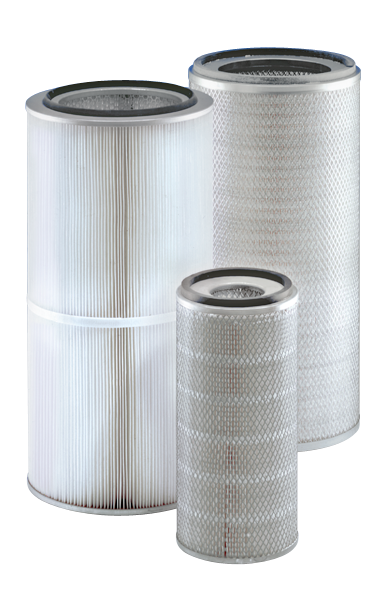

Filter Cartridges Ø 324, 327 mm MICROTEX

  • Up to 21 m² filter area per element
  • Filter material with nanofibers and flame retardant possible
  • Components harmless with food contact upon request

Applications

Safety filter
Deburring
Manufacture of fertilizers
Shot blasting machines
Welding fume separation
Powder coating

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21

  • Cleaning nozzles
  • Short injectors
  • Venturi nozzles
  • Solenoid valves
  • Valve controls
  • Flow guide cylinder

Raw gas side installation with tie rod

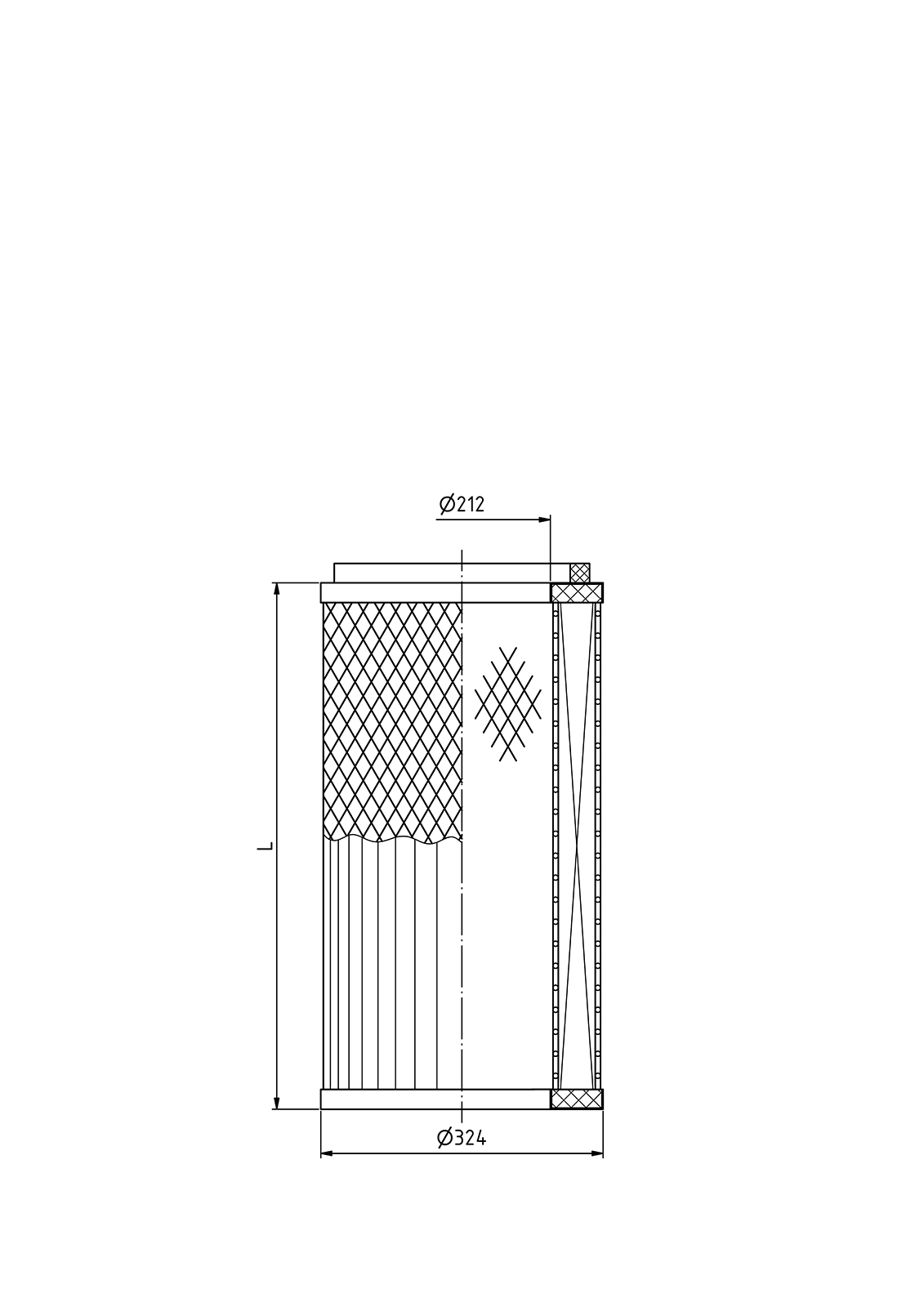

Both ends open

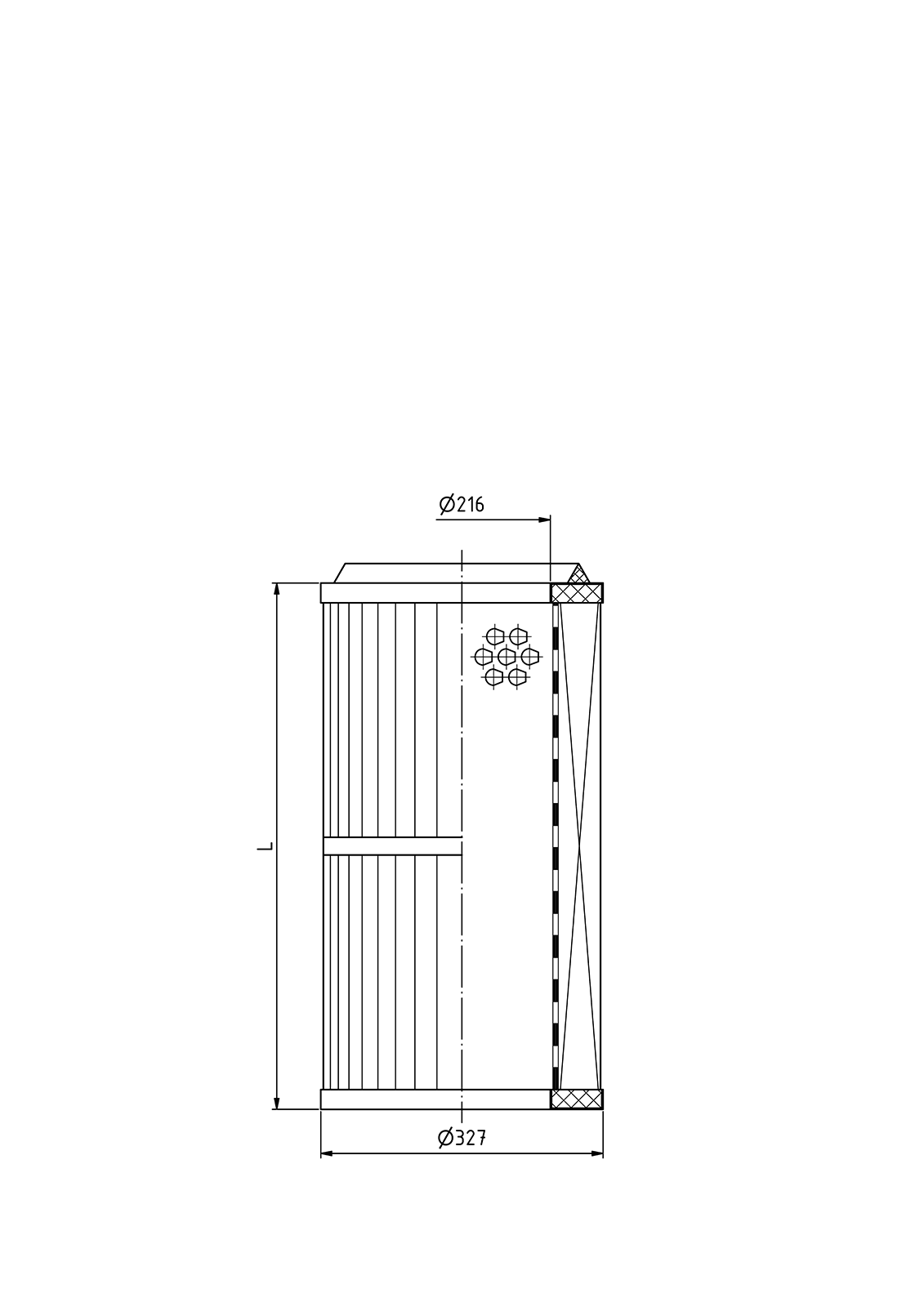

Both ends open

Raw gas side installation with tie rod

For raw gas side installation with tie rod or both ends open

Ø A
[mm]
Length L
[mm]
Ø B
[mm]
Filter area
[m²]
324 660 13 21,0
324 660 - 21,0
327 662 13 11,0
327 662 - 11,0

Technical changes reserved.
