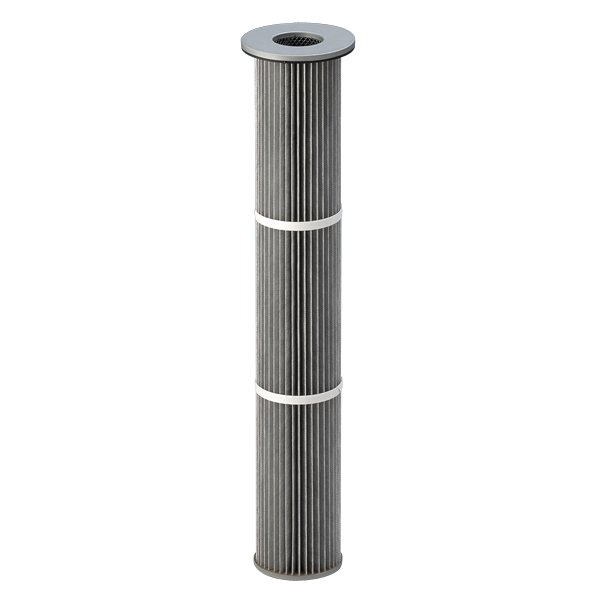

Filter Cartridges Ø 195–154 mm
Applications
Silo ventilation
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- Certified for food according to REG (EC) 1935, FDA CFR 21
For clean side installation Ø 195 mm
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 154 | 502 | 1,1 |
| 154 | 502 | 1,3 |
| 154 | 602 | 1,5 |
| 154 | 982 | 1,3 |
| 154 | 982 | 2,5 |
| 154 | 982 | 3,2 |
| 154 | 1402 | 3,3 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
