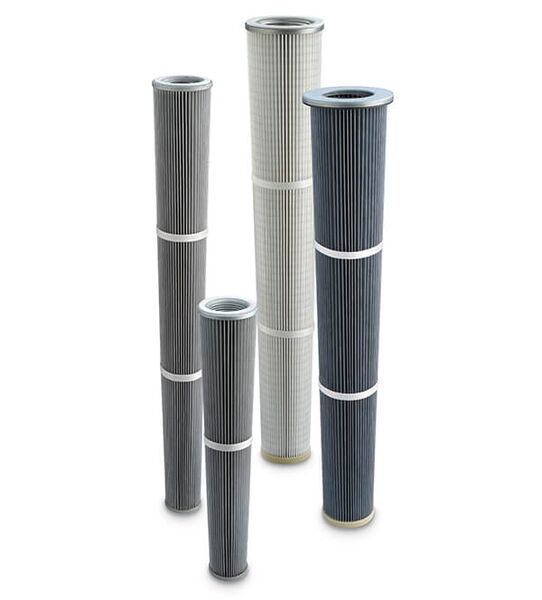

Filter Cartridges Ø 120, 160, 185 mm Conical

  • Compact dust collectors
  • Low upflow velocity in the system
  • Small interior space of the filter cartridge
Request data sheet

Applications

Silo ventilation
Pharma industry
Production of food
Mobile dust collectors
Pneumatic conveyance
Filter Media
  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21
Accessories
  • Filter holders
  • Cleaning nozzles
  • Solenoid valves
  • Valve controls
To the accessories

Raw gas side installation with thread Rd 72

For raw gas side installation with Rd 72 thread

Ø
[mm]
Length L
[mm]
Filter area
[m²]
120-80 302 0,5
120-80 602 1,0
120-80 982 1,6


Accessory: filter holder 310-001-000071

Raw gas side installation with thread Rd 100

For raw gas side installation with Rd 100 thread

Ø
[mm]
Length L
[mm]
Filter area
[m²]
160-115 302 0,7
160-115 602 1,5
160-115 982 2,5
160-115 1202 3,0

Accessory: filter holder 310-001-000038

Clean side installation

For clean side installation Ø 185 mm

Ø
[mm]
Length L
[mm]
Filter area
[m²]
185-115 302 0,7
185-115 602 1,5
185-115 982 2,5
185-115 1202 3,1



Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
