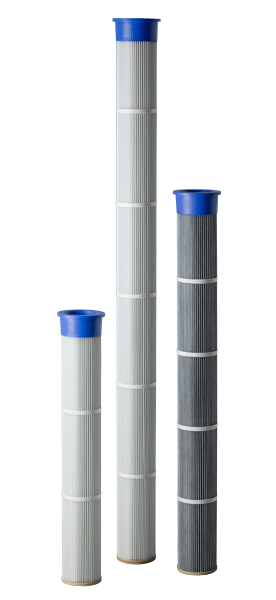

Filter Cartridges Ø 157–150 mm EASY FIT
- Assembly without tools by inserting from the clean gas side
- Universally applicable
- Suitable for high dust concentrations
- Maximum operating temperature 80 ° C, special design 110 ° C on request
Applications
Grinding of mineral powders
Processing of tobacco
Replacement for filter hoses
Processing of wood and laminate
Production of animal feed
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Short injectors
- Cleaning nozzles
- Solenoid valves
- Valve controls
For clean side installation Ø 157 mm
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 150 | 660 | 1,1 |
| 150 | 1040 | 1,9 |
| 150 | 1260 | 2,3 |
| 150 | 1460 | 2,7 |
| 150 | 1560 | 2,9 |
| 150 | 2060 | 3,9 |
for hole in the filter mounting plate Ø 159 mm
Accessory: filter holder 310-001-000031
Technical changes reserved.
