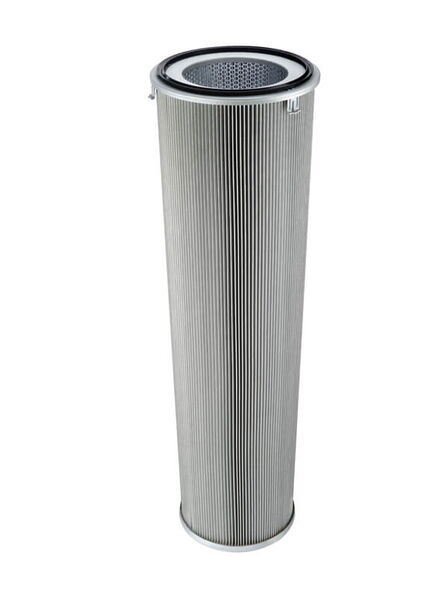

Filter Cartridges Ø 337–228 mm Conical with Click System

  • For compact systems
  • Installation by Click system
  • Low upflow velocity in the system
  • Smaller interior of filter cartridge

Applications

Spare part

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

For raw gas side installation with click system

Ø
[mm]
Length L
[mm]
Filter area
[m²]
337 600 7,5
337 985 12,5
337 1166 15

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
