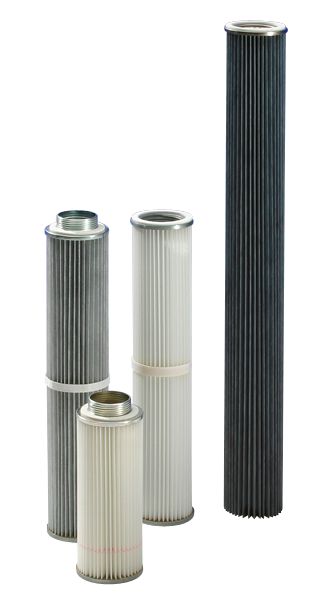

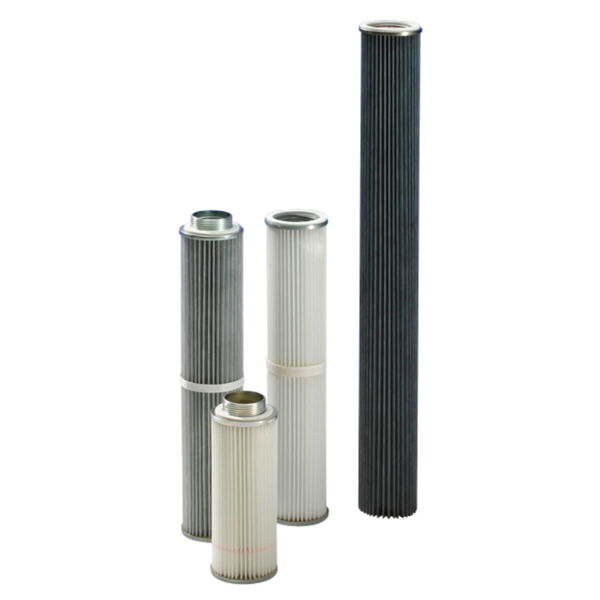

Filter Cartridges Ø 115 mm with Thread
- Simple assembly by screwing in
- No tools required

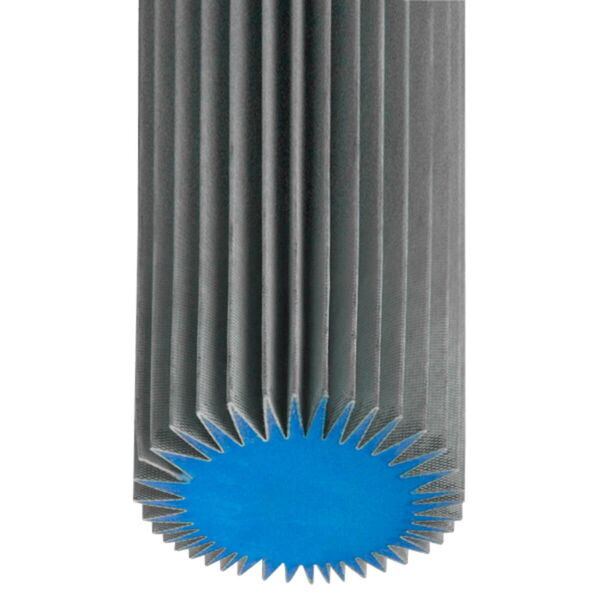

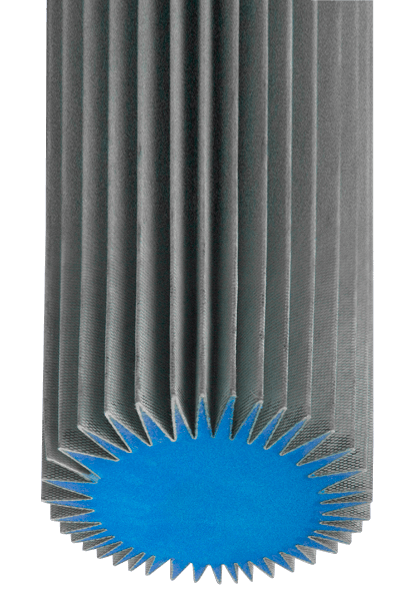

- Star-shaped bottom possible
Applications
Pharmaceutical Industry
Production of plastic parts
Pneumatic conveyance
Glass industry
Filling stations
Production of food
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- Certified for food according to REG (EC) 1935, FDA CFR 21
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
Raw gas side installation with thread Rd 60
Series thread Rd 60
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 115 | 202 | 0,3 |
| 115 | 302 | 0,4 |
| 115 | 402 | 0,5 |
| 115 | 602 | 0,8 |
| 115 | 982 | 1,3 |
| 115 | 1202 | 1,6 |
Accessory: filter holder 310-001-000043
Raw gas side installation with thread Rd 72
Series thread Rd 72
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 115 | 202 | 0,3 |
| 115 | 302 | 0,5 |
| 115 | 602 | 1,0 |
| 115 | 982 | 1,6 |
| 115 | 1202 | 2,0 |
Accessory: filter holder 310-001-000071
Raw gas side installation with thread Rd 74
Series thread Rd 74
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 115 | 202 | 0,3 |
| 115 | 302 | 0,5 |
| 115 | 602 | 1,0 |
| 115 | 982 | 1,6 |
| 115 | 1202 | 2,0 |
Accessory: filter holder 310-001-000045
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
