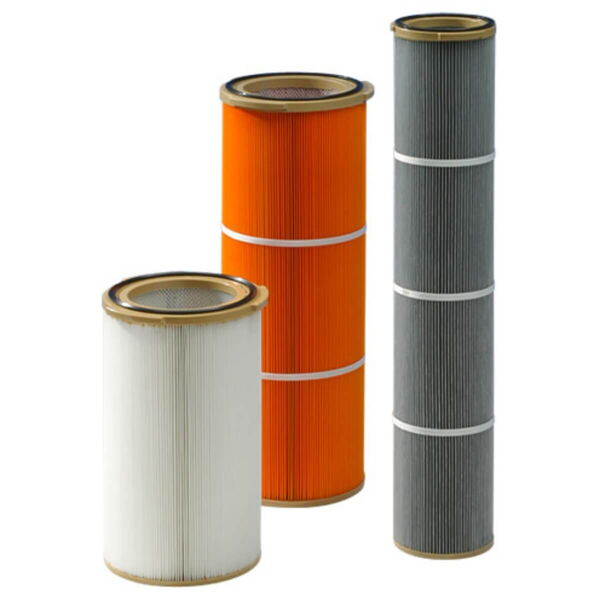

Filter Cartridges Ø 153, 216, 330 mm ECOTEX
- Quick and easy assembly without tools
- Installation by turning through 120 °
- Quick cartridge change
Applications
Powder coating
Production of jewelry
Chemical industry
Welding fume extraction
Sanding dust
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- Certified for food according to REG (EC) 1935, FDA CFR 21
- Filter holders
- Cleaning nozzles
- Short injectors
- Venturi nozzles
- Solenoid valves
- Valve controls
- Flow guide cylinder
For raw gas side installation
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 153 | 635 | 1,5 | 205 |
| 153 | 1015 | 2,5 | 205 |
| 153 | 1235 | 3,0 | 205 |
Accessory: filter holder 310-001-000019
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 216 | 610 | 3,0 | 264 |
| 216 | 990 | 5,0 | 264 |
| 216 | 1210 | 6,0 | 264 |
Accessory: filter holder 310-001-000022
| Ø A [mm] |
Length L [mm] |
Filter area [m²] |
Ø TK [mm] |
|---|---|---|---|
| 330 | 610 | 6,0 | 387 |
| 330 | 610 | 10,0 | 387 |
| 330 | 990 | 10,0 | 387 |
| 330 | 990 | 13,0 | 387 |
| 330 | 990 | 16,0 | 387 |
| 330 | 1210 | 12,0 | 387 |
| 330 | 1210 | 16,0 | 387 |
| 330 | 1210 | 20,0 | 387 |
Accessory: filter holder 310-001-000025
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
