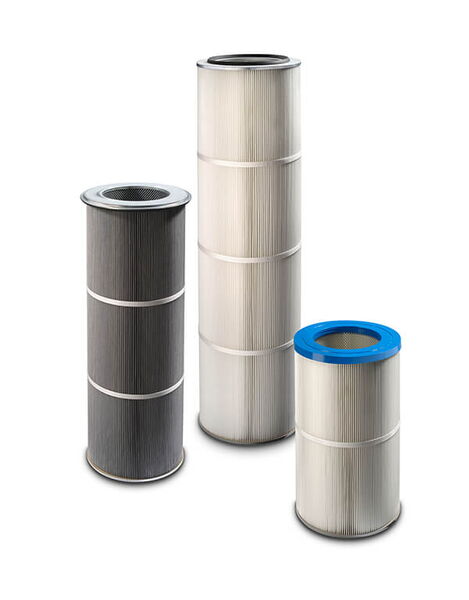

Filter Cartridges Ø 327 mm
- Large filter area in the smallest of spaces
- Favorable ratio of price to filter area
- Highest operational safety
Applications
Metal processing
Powder coating
Air intake filter
Safety filter
Extraction of welding fumes
Shot blasting machines
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 400 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Short injectors
- Venturi nozzles
- Solenoid valves
- Valve controls
- Flow guide cylinder
Raw gas side installation with tie rod
Raw gas side installation with tie rod
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
327 | 602 | 6,0 |
327 | 602 | 10,0 |
327 | 982 | 10,0 |
327 | 982 | 13,0 |
327 | 982 | 16,0 |
327 | 1202 | 12,0 |
327 | 1202 | 16,0 |
327 | 1202 | 20,0 |
Accessory: filter holder 310-001-000051
Clean side installation
For clean side installation Ø 353 mm
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
327 | 602 | 6,0 |
327 | 602 | 10,0 |
327 | 982 | 10,0 |
327 | 982 | 13,0 |
327 | 982 | 16,0 |
327 | 1202 | 12,0 |
327 | 1202 | 16,0 |
327 | 1202 | 20,0 |
Raw gas side installation with snap lock
For raw gas side installation with snap lock
Ø [mm] |
Length L [mm] |
Filter area [m²] |
---|---|---|
327 | 605 | 6,0 |
327 | 605 | 10,0 |
327 | 985 | 10,0 |
327 | 985 | 13,0 |
327 | 985 | 16,0 |
327 | 1205 | 12,0 |
327 | 1205 | 16,0 |
327 | 1205 | 20,0 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
