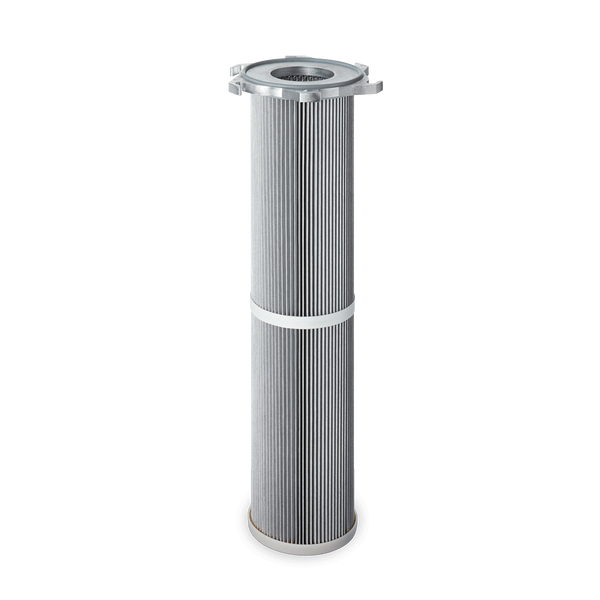

Filterpatronen Ø 145 mm mit 6-Laschen-Flansch

Filter Cartridges Ø 145 mm with 6 Lug Flange

  • For dusts that are difficult to clean
  • Universally applicable
  • Suitable for high dust concentrations

Applications

Mixing
Silo ventilation
Product conveyance

  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

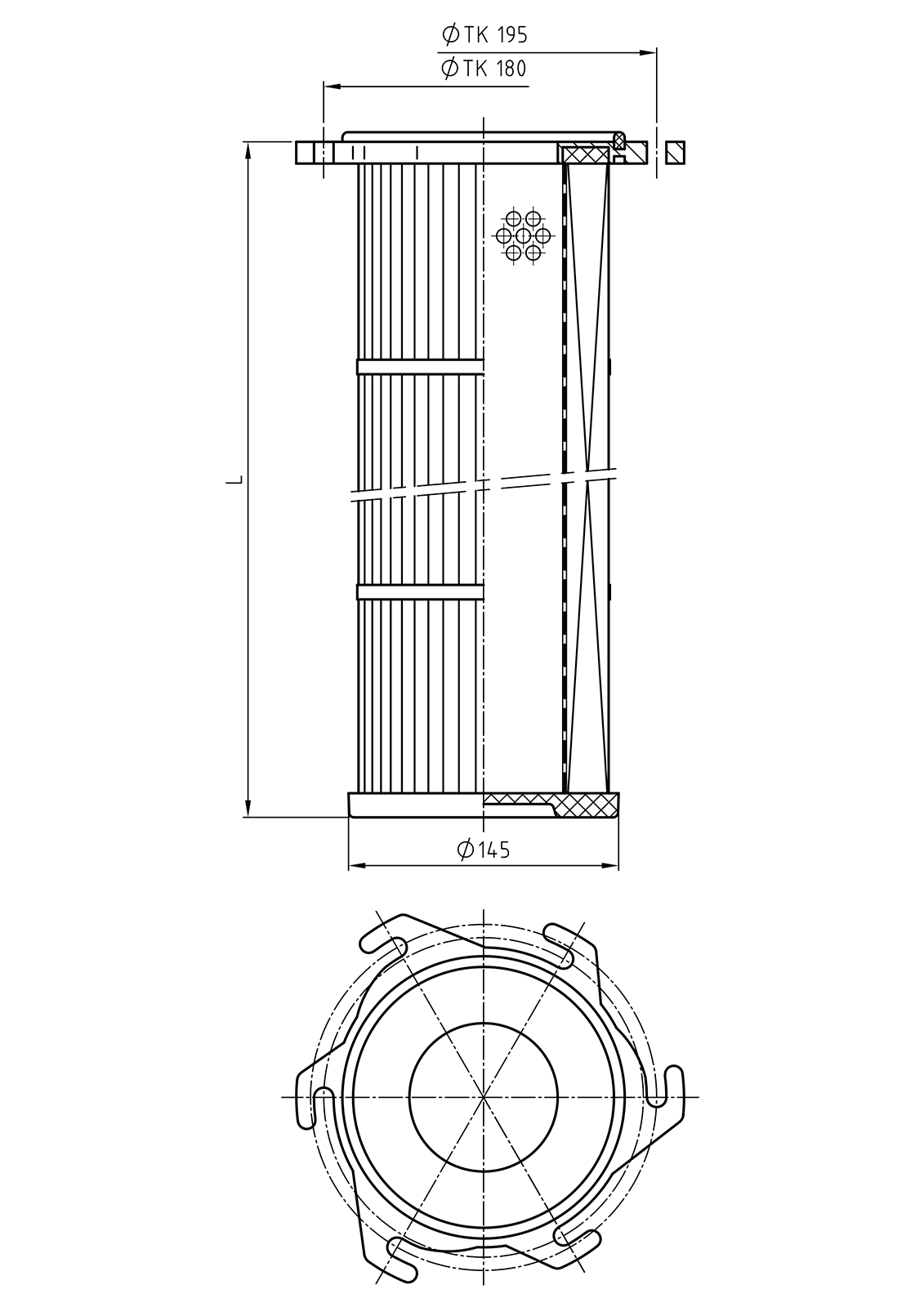

6-lug flange with Ø TK = 180 + 195 mm for installation on the raw or clean gas side

Ø
[mm]
Length L
[mm]
Filter area
[m²]
145 605 2,1
145 985 3,6
145 1205 4,3
145 1505 5,4
145 2005 5,4
145 2005 7,2

Technical changes reserved.
