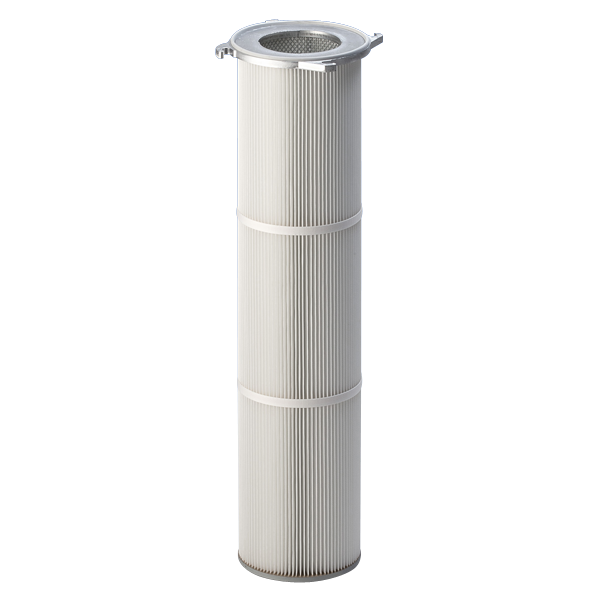

Filter Cartridges Ø 214 mm with 4 Lug Flange
4-lug flange Ø TK for assembly = 266 mm
Applications
All dedusting cases
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
With 4-lug flange Ø TK 266 mm for installation on the raw or clean gas side
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 214 | 505 | 2,5 |
| 214 | 605 | 3,0 |
| 214 | 750 | 3,7 |
| 214 | 985 | 5,0 |
Technical changes reserved.
