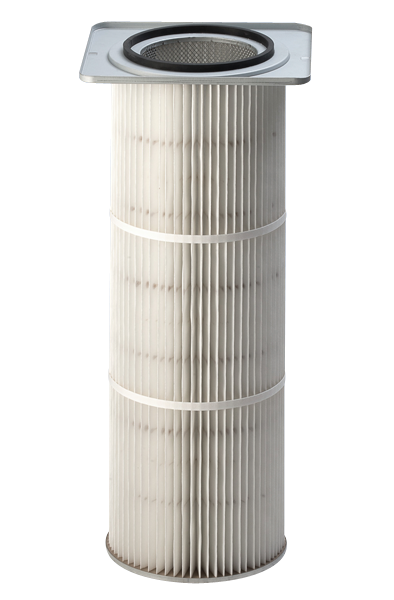

Filter Cartridges Ø 327 mm with Rectangular Flange
Flange size 362 x 406 mm
Applications
Spare part
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 140 °C
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
For raw gas side assembly with flange rectangular 362 × 406 mm
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 327 | 982 | 6 |
| 327 | 982 | 16 |
Technical changes reserved.
