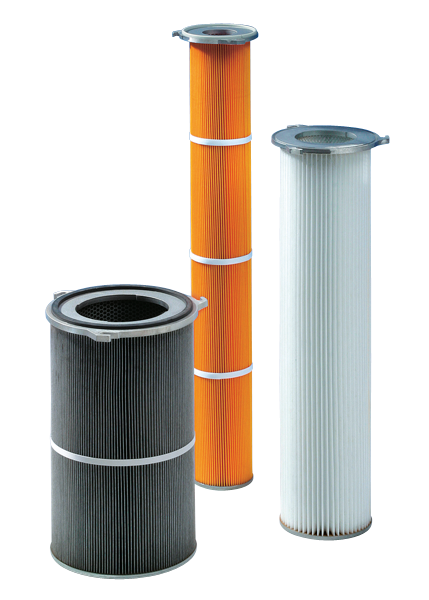

Filter Cartridges Ø 150, 214, 327 mm with 3 Lug Flange

  • Robust flange made of aluminum
  • Installation possible from the raw gas side or clean side
  • Long service life
Request data sheet

Applications

Recycling
Metal processing
Aircraft industry
Zinc spraying
Mining industry
Foundries
Filter Media
  • Polyester
  • Polypropylene
  • Glass fibre paper
  • Cellulose
  • Aramid
  • Polyphenylene sulfide
  • PTFE

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Properties

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • Certified for food according to REG (EC) 1935, FDA CFR 21
Accessories
  • Cleaning nozzles
  • Short injectors
  • Venturi nozzles
  • Solenoid valves
  • Valve controls
  • Flow guide cylinder
To the accessories

Series flange Ø TK = 205 mm for raw gas side or clean side installation

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
150 605 1,5 205
150 985 2,5 205
150 1205 3,0 205

Series flange Ø TK = 266 mm for raw gas side or clean side installation

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
214 605 3,0 266
214 985 5,0 266
214 1205 6,0 266

Series flange Ø TK = 393 mm for raw gas side or clean side installation

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
327 605 6,0 393
327 605 10,0 393
327 985 10,0 393
327 985 13,0 393
327 985 16,0 393
327 1205 12,0 393
327 1205 16,0 393
327 1205 20,0 393

Series flange Ø TK = 365 mm for raw gas side installation

Ø A
[mm]
Length L
[mm]
Filter area
[m²]
Ø TK
[mm]
327 605 6,0 365
327 605 10,0 365
327 985 10,0 365
327 985 13,0 365
327 985 16,0 365
327 1205 12,0 365
327 1205 16,0 365
327 1205 20,0 365

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
