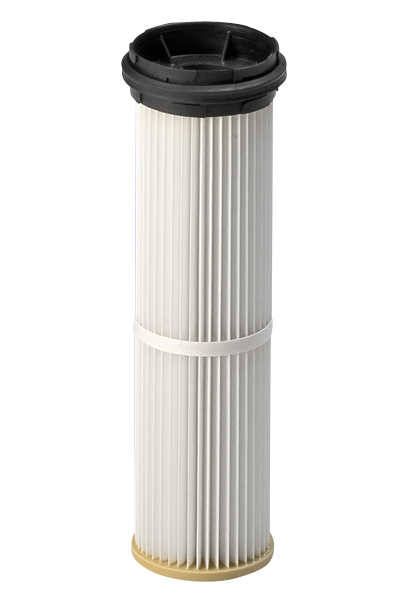

Filter Cartridges Ø 157–142 mm with Bayonet System
- Raw gas side or clean side installation
- Easy to install thanks to the bayonet system
- No tools required
Applications
Silo ventilation filter
- Polyester
- Polypropylene
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
For raw gas side and clean side installation with bayonet system
| Ø [mm] |
Length L [mm] |
Filter area [m²] |
|---|---|---|
| 142 | 540 | 0,9 |
| 142 | 912 | 1,6 |
Technical changes reserved.
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
