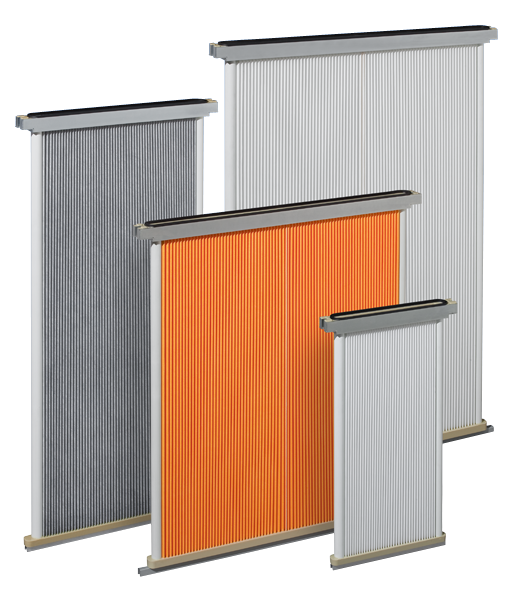

Filter Panels 497 - 1065 mm MULTITEX

Low filter resistance
Very easy to clean
Filter media with coating or membrane

Request data sheet

Applications

Powder coating

Plastics Processing

Shot blasting machines

Deposition of enamel powder

Chemical industry

Deburring

Food industry

Standard: polyester
The filter material is adapted to the properties of the dust

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

All Filter Materials

Special filter media for unusual operating conditions are available on request.

Standard

Maximum operating temperature: 80 °C
Metal parts: galvanized steel
Cleaning with compressed air
Suitable for all ATEX zones

Special designs

Maximum operating temperature up to 140 °C
You can find filter cartridges that are heat-resistant up to 400 °C at Hot gas filtration
Metal parts: stainless steel
Certified for food according to REG (EC) 1935, FDA CFR 21

For raw gas side installation

A [mm]	B [mm]	C [mm]	Length L [mm]	Filter area [m²]
517	434	480	950	2,4
517	434	480	1260	3,2
517	434	480	1555	4,1
630	560	592	950	3,2
630	560	592	1260	4,4
630	560	592	1555	5,5
737	675	700	950	4,0
737	675	700	1260	5,4
737	675	700	1555	6,7
1065	1050	1030	950	5,5
1065	1050	1030	1260	7,5
1065	1050	1030	1555	9,4

For raw gas side installation

A [mm]	B [mm]	C [mm]	Length L [mm]	Filter area [m²]
497	434	480	950	2,4
497	434	480	1260	3,2
497	434	480	1555	4,1
610	560	592	950	3,1
610	560	592	1260	4,4
610	560	592	1555	5,5
717	675	700	950	4,0
717	675	700	1260	5,4
717	675	700	1555	6,7
1045	1050	1030	950	5,5
1045	1050	1030	1260	7,5
1045	1050	1030	1555	9,4

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
