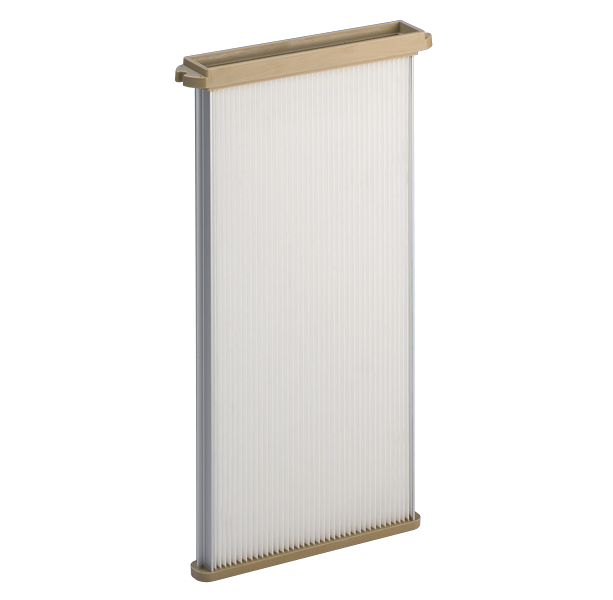

Filter Panels 472-423 mm

Applications

Spare part
Silo ventilation

  • Standard: polyester
  • The filter material is adapted to the properties of the dust

The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.

Special filter media for unusual operating conditions are available on request.

Standard

  • Maximum operating temperature: 80 °C
  • Metal parts: galvanized steel
  • Cleaning with compressed air
  • Suitable for all ATEX zones

Special designs

  • Maximum operating temperature up to 140 °C
  • You can find filter cartridges that are temperature-resistant up to 400 °C at Hot gas filtration
  • Metal parts: stainless steel
  • harmless with food contact according to EC + US FDA regulations

For clean side installation

[mm] Length L
[mm]
Filter area
[m²]
472-423 528 1,7
472-423 933 3,0

Technical changes reserved.

We implement your requirements

Are you looking for a solution for a new area of ​​application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
